10" LCD Replacement for 12" CRT Monitor

QES1510 Series

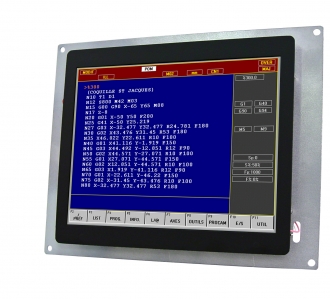

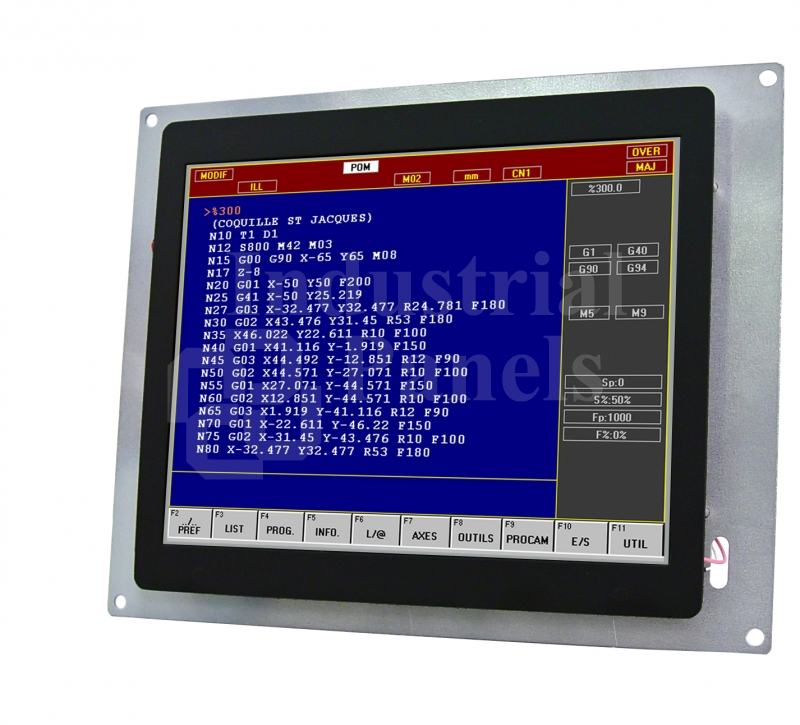

Use our 10.4” LCD Replacement Display to substitute the 12” CRT monitor used in your Mazak CNC Mazatrol, Mitsubishi Meldas or Yamazaki machine tools.  This rugged industrial 10.4” LCD Display mounts right onto the CRT mounting studs of the existing 12” CRT monitor chassis and was designed to operate with legacy systems built by Philips, Bosch, Cybelec, Delem, GE, Heidenhain, Sinumerik, JUNG, E machine, Marposs, Mitsubishi, Okuma, Mazak, and Siemens.  The QES1510 Series 10.4” LCD displays replace most 12” CRT monitor models and extend the life of CRT-based HMI interfaces.

Designed to operate from 15.75KHz through 100KHz, these rugged 10.4” LCD displays can be configured to operate with CGA, EGA, MDA video formats and many other legacy timings used in systems such as JUNG, E machine, Marposs, Mitsubishi, Okuma, Mazak, and Siemens Control Systems.

Optional TTL CGA, EGA, MDA video capability, contrast ratios of 500:1 and brightness levels of 250 cd/m2, and standard features such multi-language on-screen display, DDC1/2B Plug and Play, and wide viewing angle capability makes this versatile 10.4” LCD display an excellent choice for many legacy industrial display needs.

QES1510-100 Series 10.4” LCD Replacements for 12” CRT Monitor

Manufacturer
CNC or Equipment Control Description
Origianl Monitor P/N Monitor Description
Boehringer VDF Philips CNC 3000 B2T 12" Monochrome
Boehringer VDF Philips CNC 3580 B3T 12" Color Monitor
BOSCH Bosch CC200, CC220M, CC300, CC320 12" Monochrome
Cybelec Cybelec DNC 800 Control Unit 12" Color Monitor
Delem Delem DA-58, DA-59, DA-65, DA69 12" Color Monitor
Delem DA21, DA24e, DM-54, DA-64 12" Monochrome
GE CNC monitor GE 2000 Series Control System. 44A719978  12" Monochrome
Heidenhain Heidenhain System Series TNC 406, 407, 410, 415 Controls - System Number of 26052001  BC110B 12" Color Monitor
Heidenhain Heidenhain TNC 232 Control Unit BE132B 12" Monochrome
Heidenhain Heidenhain system series TNC 145, 150 Controls - System Number of 222267401  BE211  12" Monochrome
Heidenhain Heidenhain system series TNC 145, 150, 151 controls - System Number of 23626001  BE211B 12" Monochrome
Heidenhain Heidenhain TN351 control unit BE212 12" Monochrome
Heidenhain Heidenhain TNC 223 BE311 12" Monochrome
Heidenhain Heidenhain TNC155 control unit - System Number of 22691701  BE411 12" Monochrome
Heidenhain Heidenhain TNC355 control unit BE412B 12" Monochrome
Heidenhain Heidenhain TNC 355, TNC 332 control unit BE511 12" Monochrome
Heidenhain Heidenhain TN360 and CNC232 control unit BE512 12" Monochrome
Heidenhain MAHO Heidenhain MAHO CNC 232 control unit BE232 12" Monochrome
JUNG  Sinumerik 805/805M control unit and JUNG JC 500 CNC-E machine 12" Color Monitor
KME Amada control units with CPU 286 / 386 / 486 26512M004 12" Color Monitor
KME 29LW123A51UN/1 10.4" LCD for 12" CRT Replacement
KME 29LW12A11UN/1 12" Monochrome CRT Replacement
KME 29LW12NA11UN/1 12" Monochrome CRT Replacement
KME 29LW12NA71UN/1 10.4" LCD for 12" CRT Replacement
KME 29LW12NE11UN/1 12" Monochrome CRT Replacement
MAHO Heidenhain TNC 306 / TNC 360 BE212 or BE512 12" Color Monitor
Marposs Marposs E9034 control unit Marposs E9034 12" Monochrome
Marposs Marposs E9066 control unit Marposs E9066  12" Monochrome
Matsushita Mitsubishi control systems TR-120S9C 12" Monochrome
Mazak Mazak Mplus and Tplus control system series HM-12PDB 12" Monochrome
Mazak Mazak M2 T2 system series controls MDT1283B 12" Monochrome
Mazak Mazak Mplus and Tplus control system series ME-12PDB 12" Monochrome
Mazak Monitor Mazak CNC Controls C-3240  12" Color Monitor
Mazak monitor  Mazak CNC Mazatrol, Mitsubishi Meldas and Yamazaki machine  C-3240  12" Color Monitor
Mitsubishi Monitor Mazak Quickturn Controls C-3240LP 12" Color Monitor
Mitsubishi Monitor ARBURG - Dialogic EUM-1282M 12" Color Monitor
Mitsubishi Monitor Mitsubishi series control MDT1216 12" Monochrome
Mitsubishi Monitor Mitsubishi series control MDT1283B-2A 12" Monochrome
Motorola  LAM 490 25RE-A02 12" Monochrome
Okuma  Okuma OSP 5000 Control Unit 12" Color Monitor
Okuma  Okuma OSP 5020L / LB15 Control Unit 12" Color Monitor
Siemens Siemens Sinumerik 820 /820M GA. 3 / 820 T GA.3 / 850 / 880 / 88G / 850 / 880 6FC3261-1AC-Z 12" Color Monitor
Siemens Siemens Sinumerik 820 /820M GA. 3 / 820 T GA.3 / 850 / 880 / 88G / 850 / 880 6FC3561-1AC-Z 12" Color Monitor
Siemens Siemens Sinumerik 820 /820M GA. 3 / 820 T GA.3 / 850 / 880 / 88G / 850 / 880 6FC3801-0AC-Z 12" Color Monitor
Siemens Siemens Sinumerik 820 /820M GA. 3 / 820 T GA.3 / 850 / 880 / 88G / 850 / 880 6FC3986-3AU (RGB) 12" Color Monitor
Siemens Siemens Sinumerik 820 /820M GA. 3 / 820 T GA.3 / 850 / 880 / 88G / 850 / 880 6FC3988-7AM20 12" Color Monitor
Siemens Siemens CNC special 805 control systems  6FC4600-0AR04 12" Color Monitor
Siemens Siemens CNC 810, 820, 840 control systems 6FC4600-0AR50 12" Color Monitor
Siemens Siemens CP527M control unit MP12-527 12" Monochrome
Siemens Siemens CNC 810, 820, 840 control systems SC-1200 12" Color Monitor
Siemens Sinumerik Siemens Sinumerik 840D Operator Panel Control Unit 6FC5247-0AA16-0AA1 12" Color Monitor
Siemens Sinumerik SINUMERIK: 820/850/880/880G, Index C200 AS256 12" Color Monitor
Siemens Sinumerik SINUMERIK: 820/850/880/880G, Index C200 AVUS 3/4 12" Color Monitor
Siemens Sinumerik Siemens CNC special 805 control systems  MAM32-12 or Mam3212 12" Color Monitor
Siemens Sinumerik Control Unit INDEX C200 12" Color Monitor
Siemens Sinumerik Siemens Sinumerik 805/805M and JUNG CNC-E/JC500 12" Monochrome

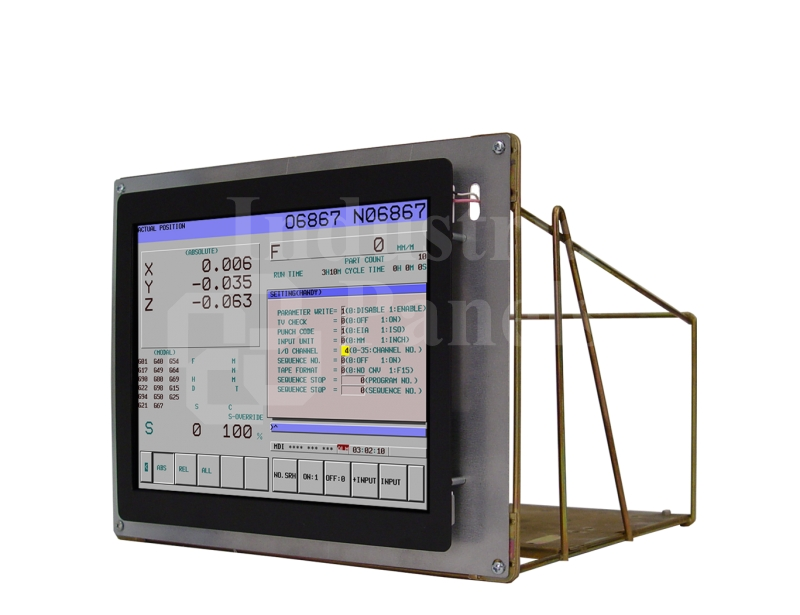

stock photo
