With 15KHz through 68Khz operation, optional TTL video capability, contrast ratios of 800:1 and brightness levels of 700 cd/m2, the QES1506 Series color LCD TFT display is an excellent choice for many Legacy Industrial Display needs. Standard features such multi-language on-screen display, DDC1/2B Plug and Play, and wide viewing angle capability making this a versatile LCD display. This Open-Frame chassis drops directly into Yasnac CNC / JANCD GSP10 DF6101675 and is a direct replacement of Matsushita TR-6DA1.
15.75 to 100 KHz -Specially designed for Slow Scan Signals - Legacy Timings
Yasnac CNC / JANCD GSP10 DF6101675 Special Timing
CGA, EGA, MDA and all VESA STD up VGA
Composite Video (NTSC) – RCA Jack
Custom Designs Including Specification, Color, Finish and Format
Direct Replacement Matsushita TR-6DA1

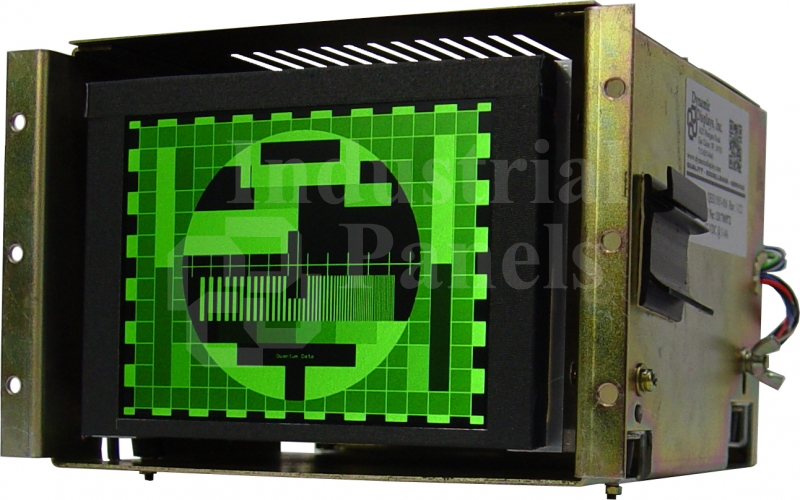

Drop Directly into The Mounting Holes of a 6” CRT Monitor
High Bright TFT Display: 700 Nits
High Contrast – 800:1 Typical
Image Size & Position Adjustment
Open Frame Rugged Construction
Rugged Industrial-grade Steel chassis
Solid State LED Backlight
Options
12V, 24V, 28 and 48V DC Input Voltage Options
Anti-Reflective Protective Faceplate Option
Conformal Coating of Internal Assemblies for Enhance Ruggedization
Custom Designs based on Customer’s Exact Needs
RCA (NTSC/PAL) and 5 Pin Mini Din (S-video)
RS170 & RS343 Interlace Formats
Touch screen option (Resistive and Capacitive)
Wireless Remote Control Option
Product Description

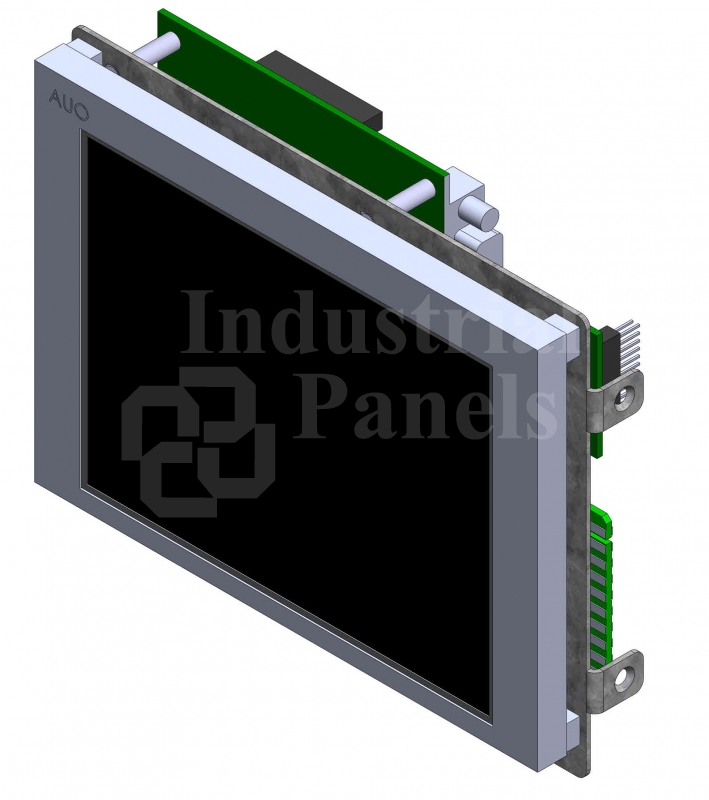

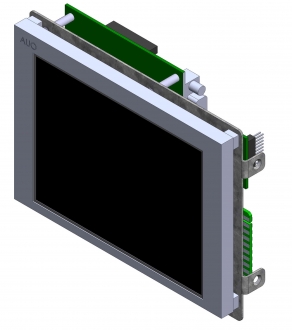

Industrial-Panels QES1506 Series LCD Industrial Monitor is a 5.7 inch open frame monitor designed to be a 6 Inch CRT Replacement Monitor.These Industrial Monitors are rugged, high performance 5.7-inch Active Matrix COLOR TFT LCD monitors, designed as a drop-in replacement for many industrial 6 inch open frame monitors. It’s rugged steel chassis is designed to drop into the mounting holes of the original industrial 6-inch CRT, making it unnecessary to replace the original chassis. Its multi-frequency plug & play capability enables this RGB LCD monitor to interface with a wide variety of video formats for easy replacement of your legacy CRT display.
With 15KHz through 68Khz operation, optional TTL video capability, contrast ratios of 800:1 and brightness levels of 700 cd/m2, the QES1506 Series color LCD TFT display is an excellent choice for many legacy industrial display needs. Standard features such multi-language on-screen display, DDC1/2B Plug and Play, and wide viewing angle capability making this a versatile LCD display. This Open-Frame chassis drops directly into Yasnac CNC / JANCD GSP10 DF6101675 and is a direct replacement of Matsushita TR-6DA1.
Our engineers understand, no matter how thoughtful our designs are, there are always things you need to modify from this base design. That is the reason our open frame monitor is very flexible to modify into your project requirements. Call us today at 800.793.6862or email us at sales-IP@dynamicdisplay.com
QES1506 Series 5.7" LCD Replacement for 6" CRT Monitor Monitors for CNC Machines
Original Monitor Manufacturer
CNC or Equipment Control Description
Original Monitor P/N
Monitor Description
Matsushita
YASKAWA JANCD-GSPIO DF6101675 REV B CONTROL PANEL MATSUURA MC710
