9" Fanuc CNC Controls A61L-0001-0086 Monitor

QES1508-054

Replacement Fanuc Monitor Model: A61L-0001-0086

If you need a drop-in replacement display for your A61L-0001-0086 Fanuc Monitor, look no further.  The QES1508-054 - Fanuc CNC Control Monitor is a high performance, 8.4 inch Active Matrix TFT LCD monitor whose rugged, open frame chassis is designed to drop into the mounting holes of the original Fanuc monitors, making it unnecessary to replace the original Fanuc CRT chassis.  The video input of the QES1508-054 accepts TTL video signals used in 9 inch shop floor terminal control consoles for the original A61L-0001-0086 Fanuc Monitor with no need for signal adapters of any sort.  This unit has been optimized to operate at Fanuc timing but also operates with a variety of other TTL legacy monitor timing.

With contrast ratios of 600:1 and brightness of 450cd/m2, the rugged QES1508-054 LCD TFT display is not only an excellent replacement monitor for your legacy Fanuc CRT display but other displays as well, such as the Matsushita TR-9DKYC (TR9DKYC) display.  Standard features such as multi-language on-screen display, DDC1/2B Plug and Play make this an ideal replacement for your industrial TTL legacy products.

Equivalent Model Numbers: A61L00010086, TR9DKYC

Direct Replacements

The list below represents legacy products that can be replaced with this product.

Manufacturer CNC / Equip. Description Original Part # Monitor Description
Fanuc Faunc 10, 10T, 11 and 11M Series 9 In Green Monochrome CRT A61L-0001-0086
Matsushita Faunc 10, 10T, 11 and 11M Series 9 In Green monochrome CRT TR-9DKYC

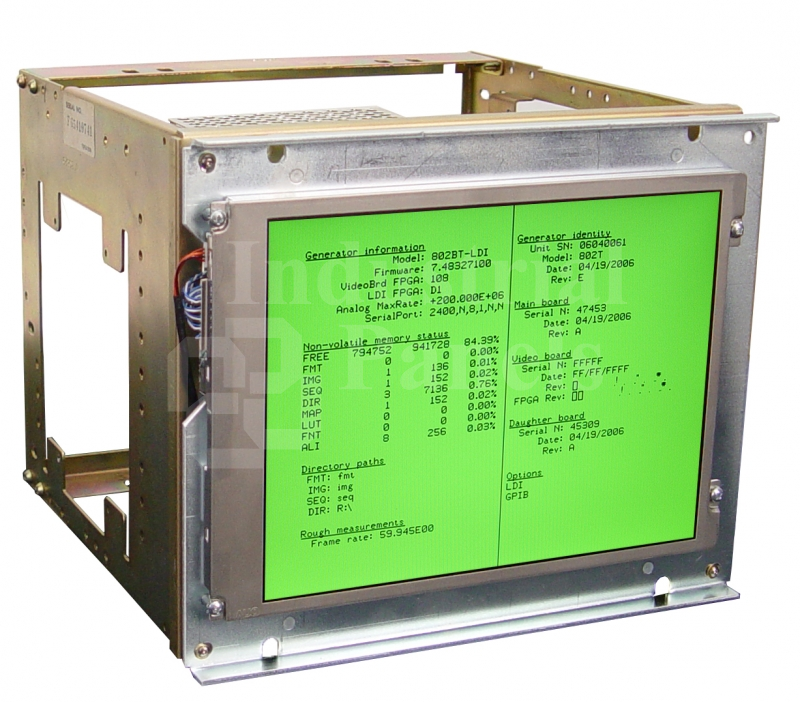

stock photo
Se Habla Español
Se Habla Español

Para nestros clientes de habla hispana tenemos el numero 800-792-6862 para ofrecerles nuestros servicios de venta y accesoria técnica.

Replacement Monitor
Cross-Reference

Industrial Panels offers a new line of industrial LCD replacements for outdated CRT displays used in many OEM systems.

View Cross-Reference Sheet
