9" Fanuc CNC Controls A61L-0001-0095 Monitor

QES1508-002

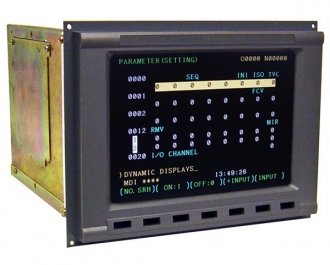

Replacement Fanuc Monitor Model: A61L-0001-0095

If you need a drop-in replacement display for your A61L-0001-0095 Fanuc Monitor, look no further.  The QES1508-002 - Fanuc CNC Control Monitor is a high performance, 8.4 inch Active Matrix Color TFT LCD monitor whose rugged, open frame chassis is designed to drop into the mounting holes of the original Fanuc monitors, making it unnecessary to replace the original Fanuc CRT chassis.  The video input of the QES1508-002 accepts TTL video signals used in 9 inch shop floor terminal control consoles for the original  A61L-0001-0095 Fanuc Monitor with no need for signal adapters of any sort.  This unit has been optimized to operate at Fanuc timing but also operates with a variety of other TTL legacy monitor timing.

With contrast ratios of 600:1 and brightness of 450cd/m2, the rugged QES1508-002 color LCD TFT display is not only an excellent replacement monitor for your legacy Fanuc CRT display but other displays as well, such as the Toshiba D9CM-01A display.  Standard features such as multi-language on-screen display, DDC1/2B Plug and Play make this an ideal replacement for your industrial TTL legacy products.

Equivalent Model Numbers: A61L00010095, D9CM01A.

Direct Replacements

The list below represents legacy products that can be replaced with this product.

Manufacturer CNC / Equip. Description Original Part # Monitor Description
Fanuc Fanuc 16, 18 and 20 Series 9 In Color CRT Monitor A61L-0001-0095
Toshiba Fanuc 16, 18, 20, 21 Series Controls 9" Color Monitor D9CM-01A
stock photo
Se Habla Español
Se Habla Español

Para nestros clientes de habla hispana tenemos el numero 800-792-6862 para ofrecerles nuestros servicios de venta y accesoria técnica.

Replacement Monitor
Cross-Reference

Industrial Panels offers a new line of industrial LCD replacements for outdated CRT displays used in many OEM systems.

View Cross-Reference Sheet
