5.7" Open Frame Chassis Mount Industrial Display

QES1506 Open Frame Series

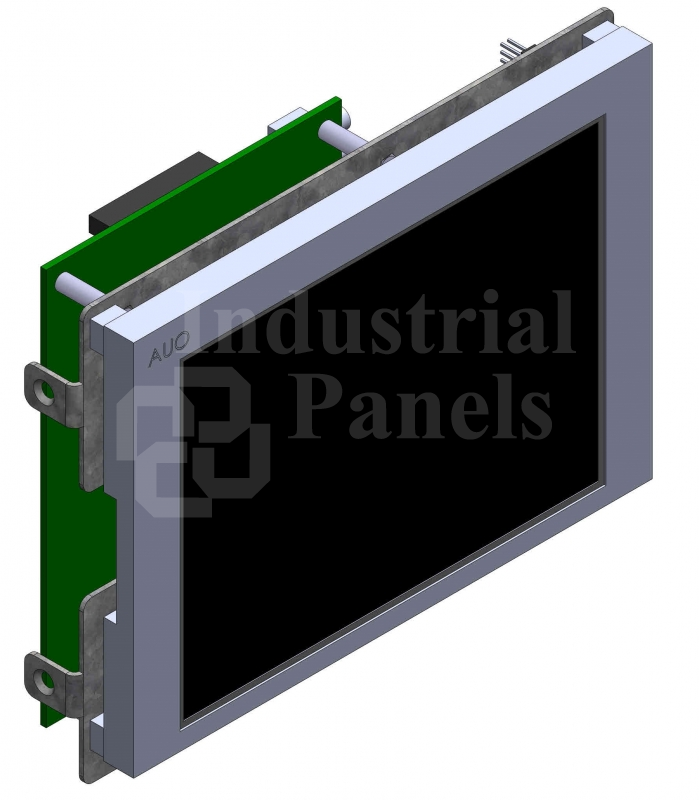

Industrial-Panels QES1506 Open Frame Series LCD Industrial Monitor is a 5.7 inch LCD open frame monitor.  These Industrial Monitors are rugged, high performance 5.7-inch Active Matrix COLOR TFT LCD monitors, ideal for small footprint applications requiring high bright rugged industrial display.  Its multi-frequency and plug & play capability enables this color LCD monitor to interface with a wide variety of video formats ranging from VGA to legacy CRT display formats.

 With 15KHz through 68Khz operation, optional TTL video capability, contrast ratios of 800:1 and brightness levels of 700 cd/m2 and operating temperature range of -30° to 85°C the QES1506 Open Frame Series color LCD TFT display is an excellent choice for many indoor and outdoor applications as well as a legacy industrial display requirements.  Standard features such multi-language on-screen display, DDC1/2B Plug and Play, and wide viewing angle capability making this a versatile LCD display.  This Open-Frame monitor chassis drops directly into the mounting holes of a 6” CRT Monitor.

 Our engineers understand, no matter how thoughtful our designs are, there are always things you need to modify from this base design.  That is the reason our open frame monitor is very flexible to modify into your project requirements.  Call us today at 800.793.6862 or email us at sales-IP@dynamicdisplay.com

stock photo
Se Habla Español
Se Habla Español

Para nestros clientes de habla hispana tenemos el numero 800-792-6862 para ofrecerles nuestros servicios de venta y accesoria técnica.

Replacement Monitor
Cross-Reference

Industrial Panels offers a new line of industrial LCD replacements for outdated CRT displays used in many OEM systems.

View Cross-Reference Sheet
