9" Fanuc CNC Controls A61L-0001-0093 Monitor

QES1508-057

Replacement Fanuc Monitor Models: A61L-0001-0093

If you need a drop-in replacement display for your A61L-0001-0093 Fanuc Monitor, look no further.  The QES1508-057 - Fanuc CNC Control Monitor Series is a high performance, 8.4 inch Active Matrix TFT LCD monitor whose rugged, open frame chassis is designed to drop into the mounting holes of the original Fanuc monitors, making it unnecessary to replace the original Fanuc CRT chassis.  The video input of the QES1508-Series accepts TTL video signals used in 9 inch shop floor terminal control consoles for the original A61L-0001-0093 Fanuc Monitor with no need for signal adapters of any sort.  This unit has been optimized to operate at Fanuc timing but also operates with a variety of other TTL legacy monitor timing.

With contrast ratios of 600:1 and brightness of 450cd/m2, the rugged QES1508-057 LCD TFT display is not only an excellent replacement monitor for your legacy Fanuc CRT display but other displays as well, such as the Matsushita TX-901AB display.  Standard features such as multi-language on-screen display, DDC1/2B Plug and Play make this an ideal replacement for your industrial TTL legacy products.

Equivalent Model Numbers: A61L00010093, TX901AB

Direct Replacements

The list below represents legacy products that can be replaced with this product.

Manufacturer CNC / Equip. Description Original Part # Monitor Description
Fanuc Fanuc 0-C, 0-TC, 0-MC Series 9 In Color CRT Monitor A61L-0001-0093
Matsushita Fanuc O-C, 15 Series 9 In Color CRT Monitor TX-901AB

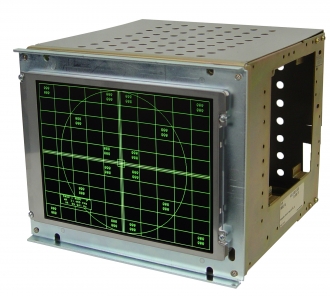

stock photo
