9" Fanuc CNC Controls A61L-0001-0092 Monitor

QES1508-058

Replacement Fanuc Monitor Model: A61L-0001-0092

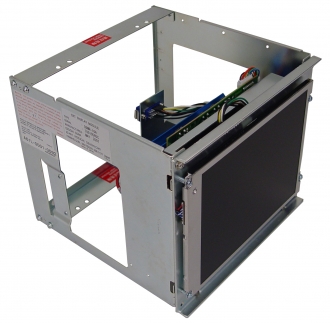

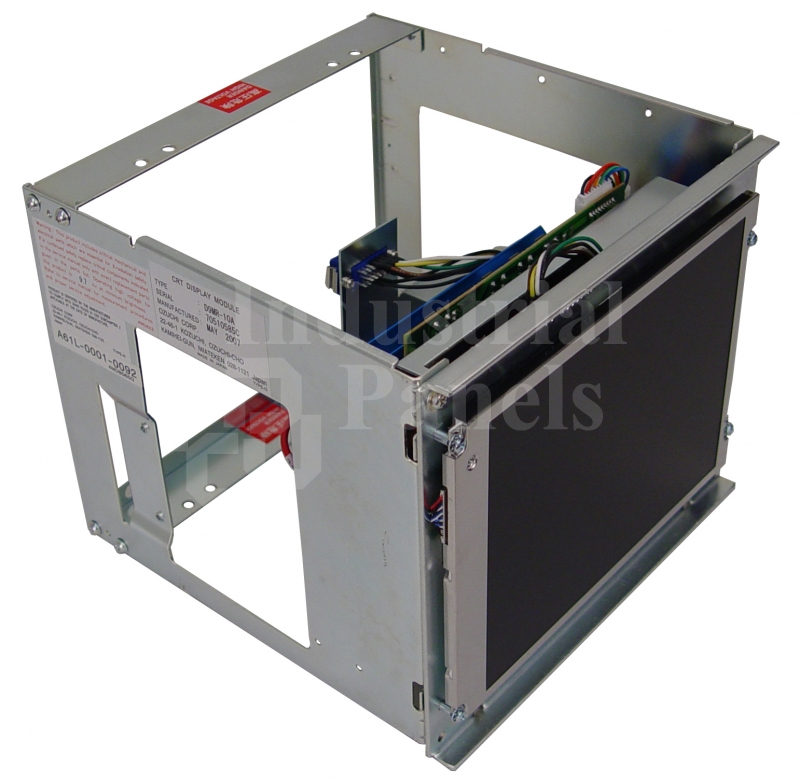

If you need a drop-in replacement display for your A61L-0001-0092 Fanuc Monitor, look no further.  The QES1508-058 - Fanuc CNC Control Monitor is a high performance, 8.4 inch Active Matrix TFT LCD monitor whose rugged, open frame chassis is designed to drop into the mounting holes of the original Fanuc monitors, making it unnecessary to replace the original Fanuc CRT chassis.  The video input of the QES1508-058 accepts TTL video signals used in 9 inch shop floor terminal control consoles for the original A61L-0001-0092 Fanuc Monitor with no need for signal adapters of any sort.  This unit has been optimized to operate at Fanuc timing but also operates with a variety of other TTL legacy monitor timing.

With contrast ratios of 600:1 and brightness of 450cd/m2, the rugged QES1508-058 LCD TFT display is not only an excellent replacement monitor for your legacy Fanuc CRT display but other displays as well, such as the Toshiba D9MR-10A, Ozuchi D9MR-10A, Toshiba D9MR-10A, Samsung KF-M7099Y displays.  Standard features such as multi-language on-screen display, DDC1/2B Plug and Play make this an ideal replacement for your industrial TTL legacy products.

Equivalent Model Numbers: A61L00010092, D9MR10A, KFM7099Y

Direct Replacements

The list below represents legacy products that can be replaced with this product.

Manufacturer CNC / Equip. Description Original Part # Monitor Description
Fanuc Fanuc 0, 0-A, 0-B, 0 Series 9" Amber Mono Monitor A61L-0001-0092
Ozuchi Fanuc 0, 0-A, 0-B, 0 Series 9" Amber Mono Monitor D9MR-10A
Samsung Hurco 5C Press Brake 9" Monochrome KF-M7099Y
Toshiba Fanuc 0, 0-A, 0-B, 0 Series 9" Amber Mono Monitor D9MR-10A
stock photo
Se Habla Español
Se Habla Español

Para nestros clientes de habla hispana tenemos el numero 800-792-6862 para ofrecerles nuestros servicios de venta y accesoria técnica.

Replacement Monitor
Cross-Reference

Industrial Panels offers a new line of industrial LCD replacements for outdated CRT displays used in many OEM systems.

View Cross-Reference Sheet
